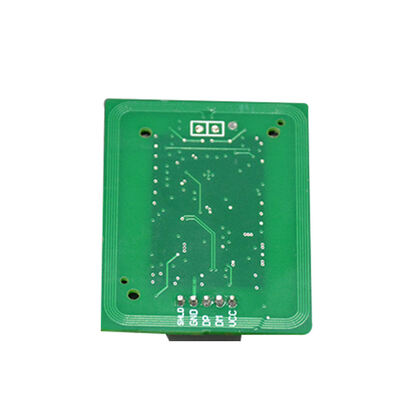

USB Contactless Nfc Reader Swipe Rfid Smart Card Reader MCR523-M (MCR523)
MCR523-M เป็นโมดูลอ่านบัตรแบบไร้สัมผัส (contactless) ที่รวมเทคโนโลยี NFC 13.56 MHz ได้ในตัวเดียว รองรับบัตรมาตรฐาน ISO/IEC 14443 หลายชนิด (เช่น MIFARE, FeliCa) เหมาะกับการนำไปใช้ในอุปกรณ์ฝัง (embedded) หรืออุปกรณ์เชื่อมต่อกับพีซี เช่น จุดตรวจบัตร, Kiosk, ระบบลงทะเบียนผู้ใช้ หรือการพิสูจน์ตัวตนดิจิทัล
| คุณสมบัติ (Feature) | รายละเอียด (Detail) |
|---|---|
| มาตรฐานบัตร (Supported Card Standard) | ISO/IEC 14443 A/B, NFC Forum Tag types 1-4 |
| ความถี่ (Frequency) | 13.56 MHz |
| ความเร็วการสื่อสาร (Data Rate) | 106 / 212 / 424 / 848 kbps |
| เสาอากาศ (Antenna) | แบบฝัง (Integrated) |
| อินเทอร์เฟซ (Interface) | USB 2.0 Full Speed (CCID) |
| ซอฟต์แวร์ /ไดรเวอร์ | PC/SC driver, M-Card API |
| แหล่งจ่ายไฟ (Power Supply) | USB (Bus-powered) |
| การใช้พลังงาน | ~50 mA (ไม่รวมบัตร) |
| ขนาด | 43 × 33 × 8 มม |
| น้ำหนัก | ~8 กรัม |
| อุณหภูมิการใช้งาน | 0° – 50°C |
| อุณหภูมิจัดเก็บ | –25° – 85°C |
| สัญญาณบ่งสถานะ | LED |
| ระบบปฏิบัติการที่รองรับ | Windows, macOS, Linux, Android (PC/SC) |
| เฟิร์มแวร์ | SmartOS™ (อัปเกรดได้) |
สภาพสินค้า & การรับประกัน
✔ สินค้าผ่านการทดสอบแล้วว่าใช้งานได้ปกติ
✔ แพ็กเกจจัดส่งปลอดภัย – ป้องกันความเสียหายระหว่างขนส่ง
✔ มีการรับประกันสินค้า ตามเงื่อนไขของร้านค้า
📦 จัดส่งทั่วประเทศ
💬 สนใจสอบถามรายละเอียดเพิ่มเติม หรือสั่งซื้อได้ทันที! [ 02-933-0022 , 081-318-9844 / LINE: @shoppingpc / shoppingpc.net ]
USB Contactless Nfc Reader Swipe Rfid Smart Card Reader MCR523-M (MCR523)
The MCR523-M is a compact contactless smart card reader module with integrated 13.56 MHz NFC support. It supports ISO/IEC 14443 Type A/B cards (e.g. MIFARE, FeliCa), making it ideal for embedded systems, kiosks, registration terminals, or any device requiring contactless credential verification.
The MCR523-M is a compact, USB-powered contactless smart card reader module that supports 13.56 MHz NFC and ISO/IEC 14443 A/B cards such as MIFARE and FeliCa. It is optimized for fast transactions (up to 848 kbps), supports mixed credential usage, and is ideal for embedded systems, registration kiosks, or access control terminals. With a small form factor, SmartOS™ firmware, and PC/SC driver support, it offers efficient and secure NFC communication.
Condition & Warranty
✔ Fully tested and 100% working
✔ Secure packaging for safe shipping
✔ Warranty available (subject to store policy)
📦 Nationwide shipping available!
💬 Contact us for more details or to place an order! [ 02-933-0022 , 081-318-9844 / LINE: @shoppingpc / shoppingpc.net ]
