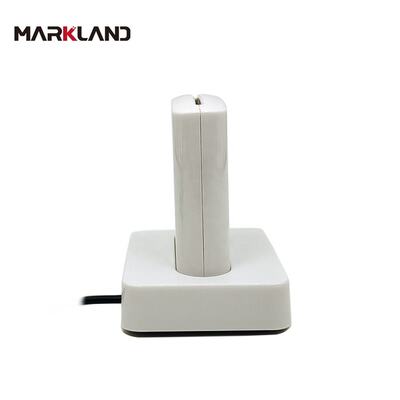

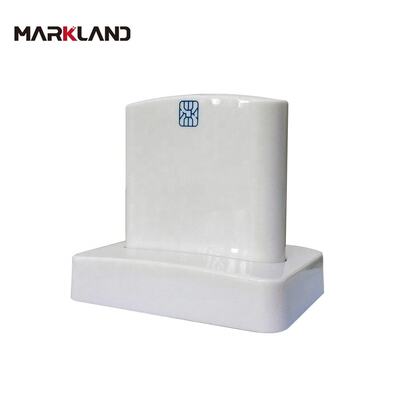

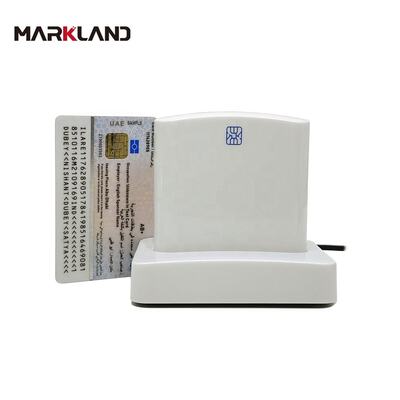

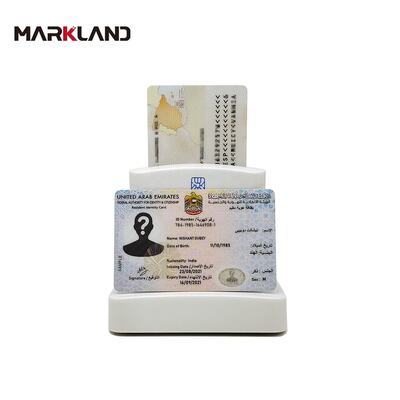

MCR3521 USB Contact Smart Card Reader ISO7816 – ID CARD READER (MCR3521)
MCR3521 เป็นเครื่องอ่าน/เขียนสมาร์ตการ์ดแบบ สัมผัส (Contact) ผ่าน USB โดยใช้มาตรฐาน ISO/IEC 7816 รองรับโปรโตคอล T=0 และ T=1 มีความเร็วการสื่อสารกับการ์ดสูงถึงประมาณ 600 kbps (ขึ้นกับบัตร) ใช้พอร์ต USB 2.0 (CCID) แบบ USB Type-A เชื่อมต่อกับคอมพิวเตอร์ได้ง่าย รองรับระบบปฏิบัติการหลากหลาย (Windows, macOS, Linux, Android) ตัวเครื่องออกแบบให้แข็งแรง มีฐานถ่วงน้ำหนัก ช่วยให้เสียบบัตรได้ง่ายแม้ใช้มือเดียว มีซ็อกเก็ตแบบ “Landing Contact” (8-pin) สำหรับบัตร ID-1 (ขนาดมาตรฐาน) มีสวิตช์ตรวจจับการ์ด, ระบบเปิด-ปิดพลังงานอัตโนมัติ, และป้องกันลัดวงจร
| พารามิเตอร์ | รายละเอียด (ภาษาไทย) | Details (English) |
|---|---|---|
| อินเทอร์เฟซกับโฮสต์ | USB 2.0 CCID (รองรับ USB 1.1 / 3.0) | USB 2.0 CCID (USB 1.1 / 3.0 compliant) |
| ความเร็ว USB | 12 Mbps (Full-Speed) | 12 Mbps (USB 2.0 full-speed) |
| มาตรฐานบัตรที่รองรับ | ISO/IEC 7816 Part 1-4 | ISO/IEC 7816 Parts 1-4 |
| โปรโตคอลการ์ด | T = 0, T = 1 และ synchronous cards (I2C, 3-wire) | T=0, T=1, synchronous cards (I2C, 3-wire) |
| ความเร็วการ์ด (Interface Speed) | สูงสุด ~600 kbps (ขึ้นกับการ์ด) | Up to ~600 kbps (depending on card) |
| ความถี่นาฬิกาบัตร (Clock) | รองรับสูง (มาตรฐาน ISO7816) สูงสุด ~16 MHz | ISO/IEC 7816 compliant, up to ~16 MHz |
| แรงดันบัตร | รองรับบัตร Class A (5V), B (3V), C (1.8V) | Supports Class A (5V), B (3V), C (1.8V) smart cards |
| การจ่ายพลังงานให้บัตร | Class A: 60 mA, Class B: 55 mA, Class C: 35 mA | Power to smart card: Class A 60 mA; B 55 mA; C 35 mA |
| การตรวจจับการ์ด | สวิตช์ “Card present”, เปิด/ปิดไฟอัตโนมัติ, ป้องกันไฟลัดวงจร | Card-present switch, automatic power on/off, short-circuit protection |
| ขนาดการ์ด | ID-1 (บัตรขนาดมาตรฐาน) | ID-1 card size |
| ประเภทขั้วติดต่อ (Contact type) | Landing Contact Socket แบบ 8 พิน | 8-pin landing contact socket |
| ไดรเวอร์ / ซอฟต์แวร์ | PC/SC API, CT-API, M-Card API ฯลฯ | PC/SC API, CT-API (wrapper), M-Card API |
| ระบบปฏิบัติการที่รองรับ | Windows (หลายเวอร์ชัน), macOS, Linux, Android | Windows, macOS, Linux, Android |
| การจ่ายไฟ (Power) | ใช้ไฟจาก USB (Bus-powered) | USB bus-powered |
| การใช้พลังงาน (Power Consumption) | < 20 mA (ไม่รวมบัตร), standby < 500 μA | < 20 mA excluding smart card, < 500 μA in standby |
| ขนาด (Dimensions) | 95 × 65 × 98 มม (รวมฐานถ่วง) | 95 × 65 × 98 mm (with weighted base) |
| น้ำหนัก (Weight) | ประมาณ 400–405 กรัม (± 5%) | ~400–405 g ± 5% |
| อุณหภูมิเชิงปฏิบัติการ (Operating Temp) | 0° ถึง 50° C | 0° to +50° C |
| การรับรอง / มาตรฐาน | ISO/IEC 7816, CCID, PC/SC, Microsoft WHQL | ISO/IEC 7816, CCID, PC/SC, Microsoft WHQL |
สภาพสินค้า & การรับประกัน
✔ สินค้าผ่านการทดสอบแล้วว่าใช้งานได้ปกติ
✔ แพ็กเกจจัดส่งปลอดภัย – ป้องกันความเสียหายระหว่างขนส่ง
✔ มีการรับประกันสินค้า ตามเงื่อนไขของร้านค้า
📦 จัดส่งทั่วประเทศ
💬 สนใจสอบถามรายละเอียดเพิ่มเติม หรือสั่งซื้อได้ทันที! [ 02-933-0022 , 081-318-9844 / LINE: @shoppingpc / shoppingpc.net ]
MCR3521 USB Contact Smart Card Reader ISO7816 – ID CARD READER (MCR3521)
The MCR3521 is a USB 2.0 contact smart card reader/writer that supports ISO/IEC 7816 standard cards. It handles both T=0 and T=1 protocols, with an interface speed up to ~600 kbps (depending on the card). It uses a CCID-compliant USB Type-A connection. The device is compatible with Windows, macOS, Linux, and Android. Its design features a heavy weighted base for stable one-handed operation, an 8-pin “landing contact” socket for ID-1 cards, a card-present detection switch, automatic power on/off, and short-circuit protection.
The MCR3521 is a contact smart card reader with a USB 2.0 interface using CCID. It supports ISO/IEC 7816 smart cards (Class A, B, C) via T=0 and T=1 protocols, with interface speeds up to ~600 kbps. Its weighted base provides stability for one-handed card insertion, making it ideal for secure authentication, banking, e-ID, corporate access, or any application needing smart card insertion.
Condition & Warranty
✔ Fully tested and 100% working
✔ Secure packaging for safe shipping
✔ Warranty available (subject to store policy)
📦 Nationwide shipping available!
💬 Contact us for more details or to place an order! [ 02-933-0022 , 081-318-9844 / LINE: @shoppingpc / shoppingpc.net ]
